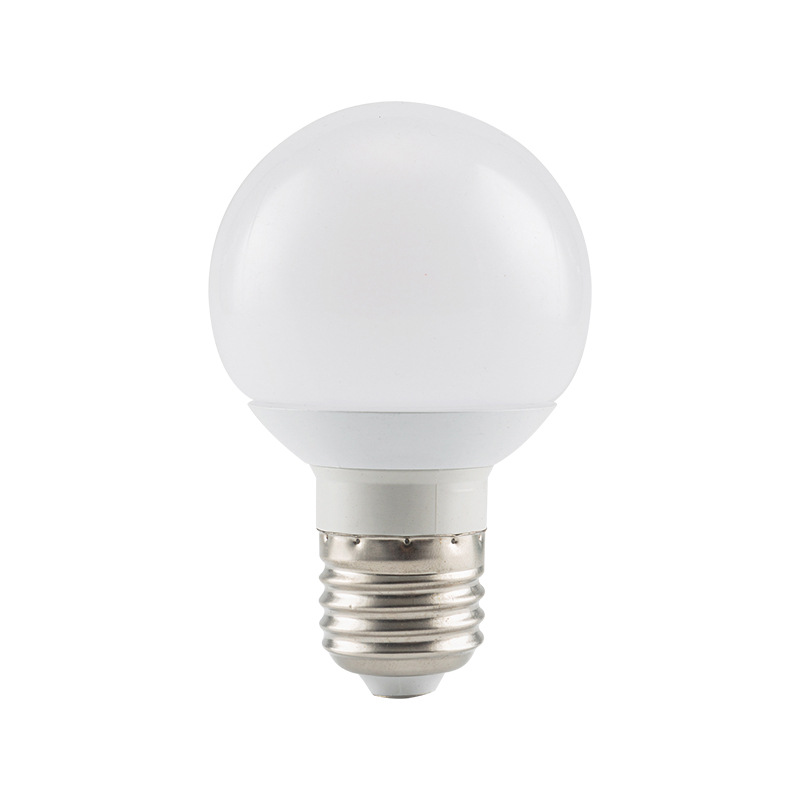

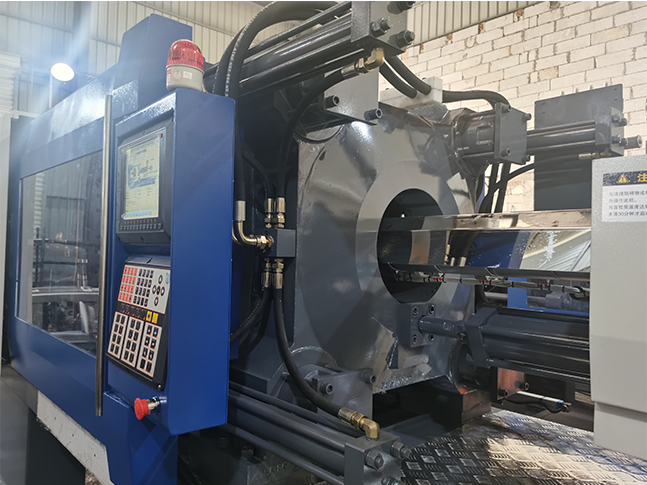

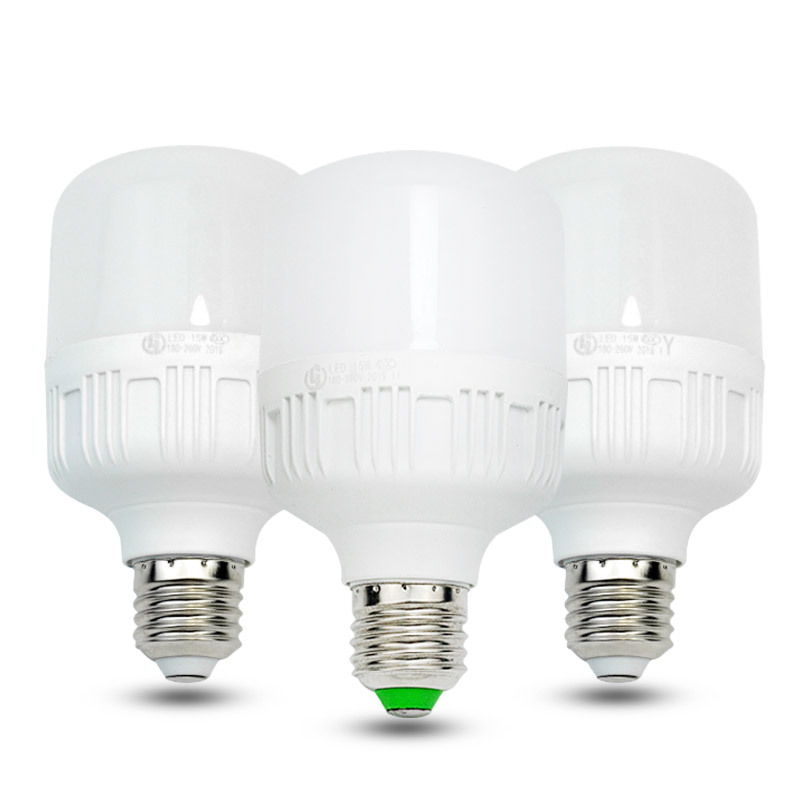

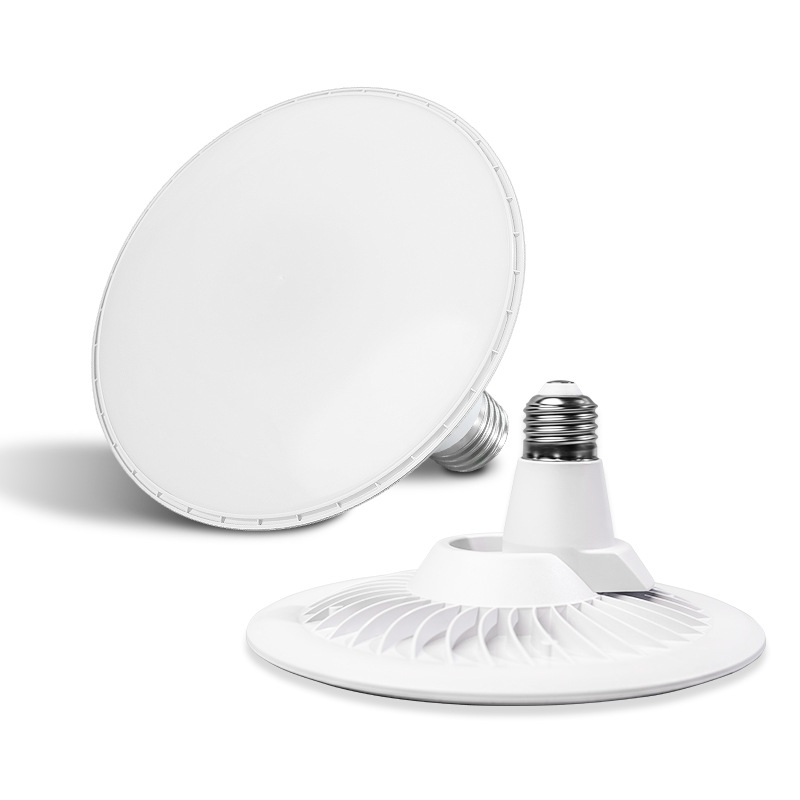

ZHENHUA’s injection blow molding machine are widely used in LED industry. High speed and steady.

Dual use: can be used as injection blow machine, and also injection molding machine

High-speed: 24 cavities/15 seconds

High production capacity: 32 cavities

Long service life

Steady production

Different tonnage machines available

CE Certificate

Technical Training and support

When you need packaging machines in various industries, please ask for help. Because we specialize in full-service packaging machine manufacturing. A leading packaging technology and one-stop service company that adapts to the rapid development of the world.

Due in stock (estimated): 10~20 Working days

FEATURES

Automatic Product Line
Equipped with the robot for automatic production line to improve efficiency.

Rotary Accuracy
The rotary part is controlled by servo motor, which ensures the rotary accuracy.

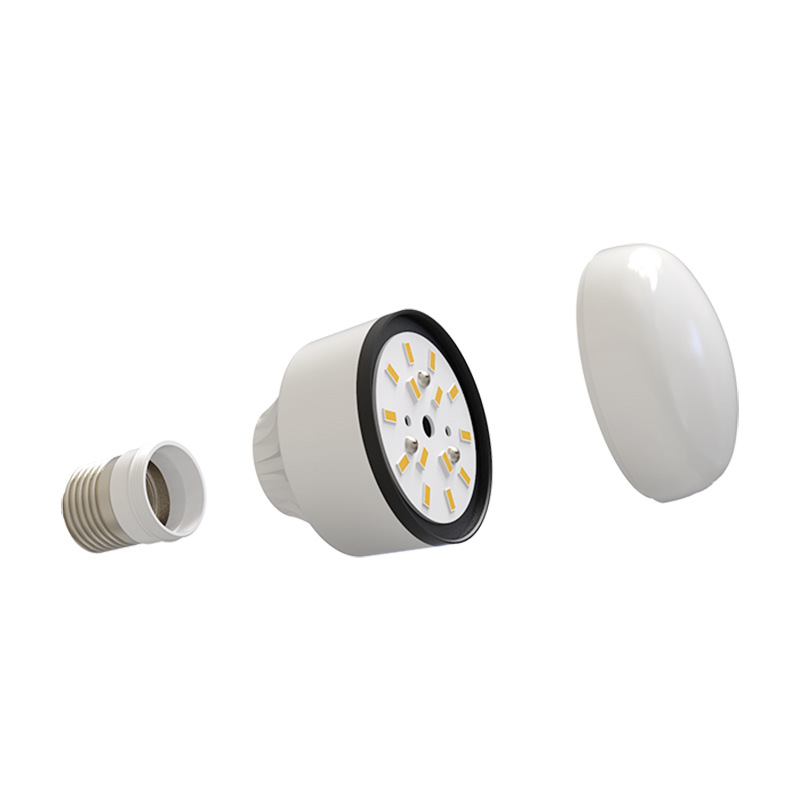

Modular Mold Design
Modular design mold structure to reduce the production cost, if the product is changed, just need to change the relative mold parts.

Good Appearance Finish
The appearance quality is perfect without a parting line, suitable for the industry which is strict for the product appearance.

Technical Parameter		UNIT	ZH-218T		ZH-338T
			A	B	A	B	C
INCETON UNIT	Screw Diameter	MM	40	45	40	45	50
	Theoretical Injection Volume	OZ	9.6	12.1	9.2	13.7	17
	lnjection Capacity	g	219	270	240	317	361
	Injection Pressure	MPa	242	188	280	220	180
	Screw Rotation Speed	rpm	0-180		0-180
CLAMPING UNIT	Clamping Force	KN	2180		3380
	Toggle Stroke	mm	460		620
	Mid Die Moving Stroke	mm	400		445
	Turret Center-height	mm	450		550
	Tie Rod Spacing	mm	510*510		670*670
	Max.Mold Thicknes	mm	550		670
	Min.Mold Thickness	mm	220		270
	Ejection Stroke	mm	120		170
	Thimble Root Number	KN	60		90
	Max. Pump Pressure	pcs	5		13
OTHERS	Pupm Motor Power	Mpa	16		16
	Electrothermal Power	KW	45		53.5
	Machine Dimensions(LxWxH)	M	5.41.21.9		6.22.02.4
	Machine Weight	T	7.2		13.8
